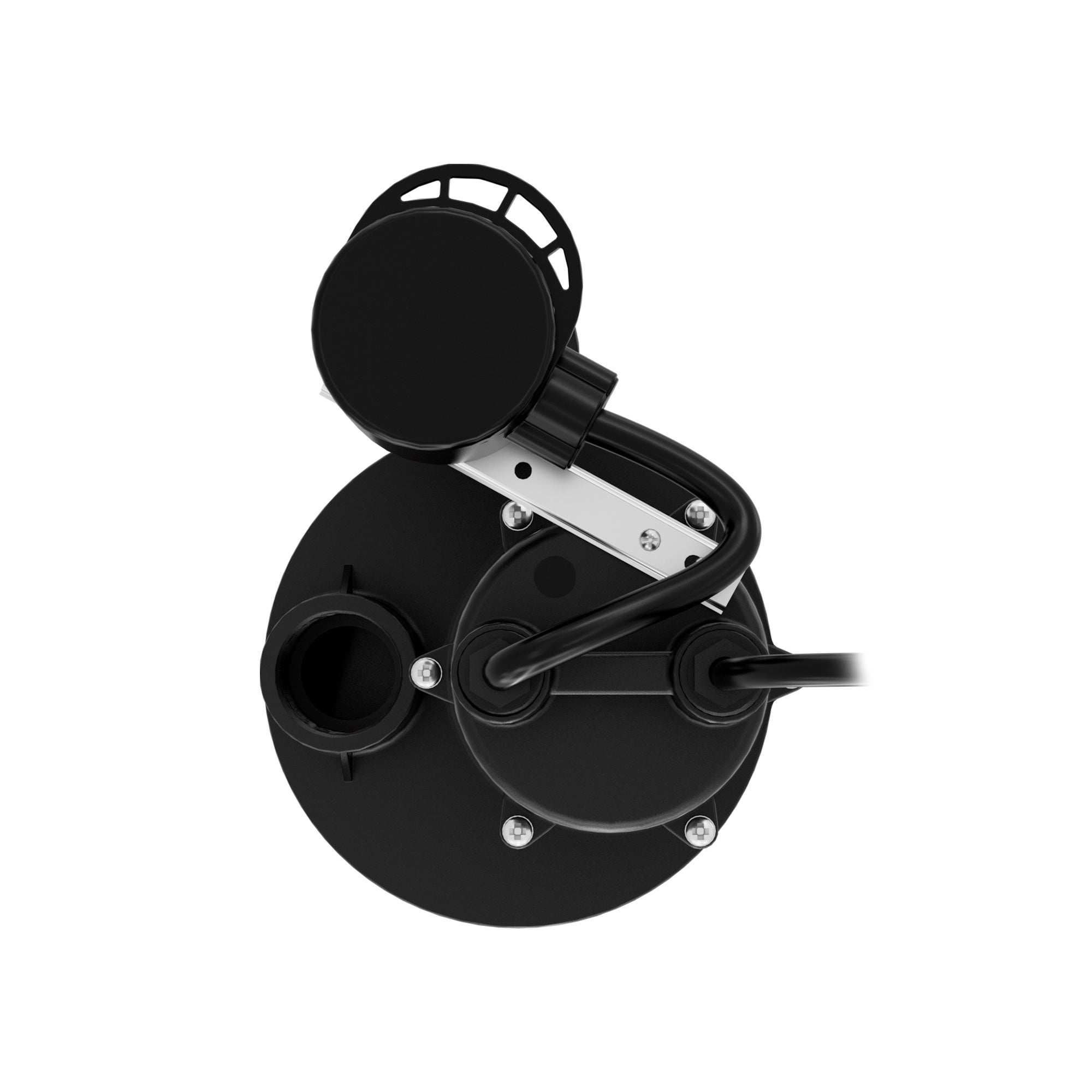

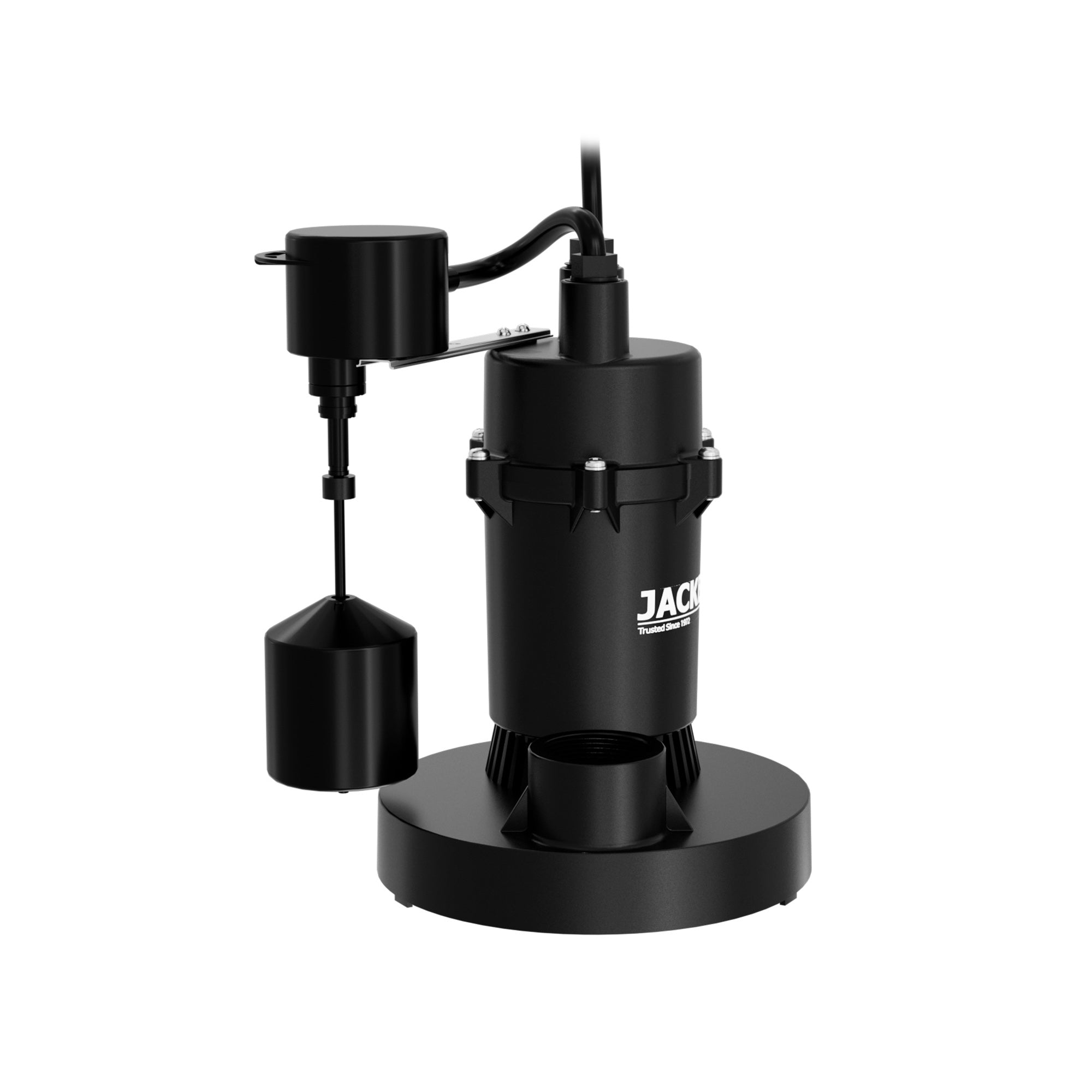

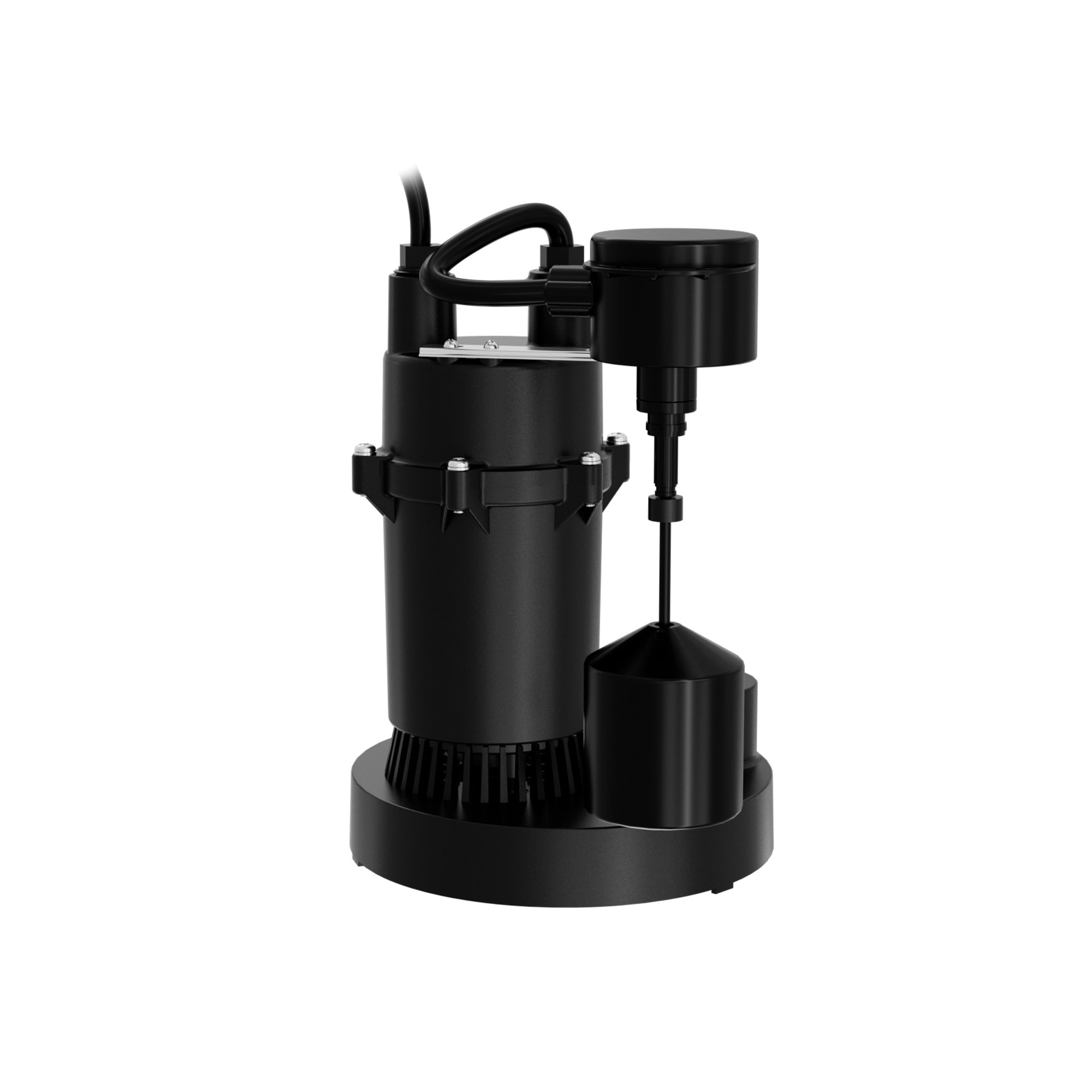

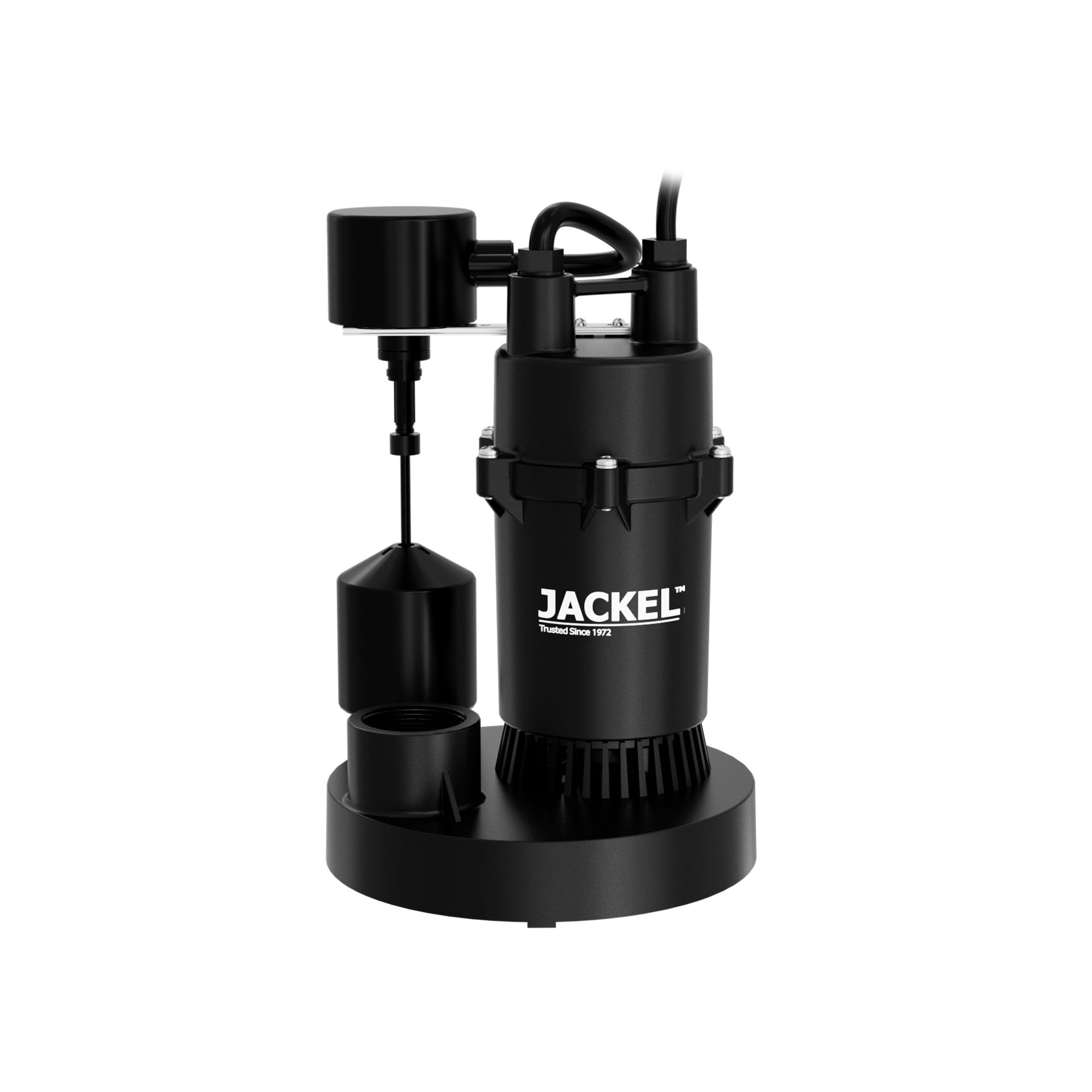

JACKEL 1/4 HP Submersible Sump Pump (Model: JP225V)

JACKEL 1/4 HP Submersible Sump Pump (Model: JP225V)

  • $ 99.99
    Unit price per


Features and Benefits

  • Aluminum motor housing maximizes pump life
  • 3-year warranty
  • Innovative vertical switch for automatic operation
  • Top suction design filters debris and minimizes clogging
  • Heavy-duty, energy-efficient, PSC motor with thermal overload protection
  • Ball bearings for quiet operation
  • Oil-filled motor for cooling and continuous lubrication
  • 1-1/2” or 1-1/4” with adapter (not included) female NPT discharge for easy installation

Specifications

Construction Materials

Motor Housing: Aluminum

Volute: Thermoplastic

Motor

Horsepower: 1/4

Volt: 115 AC, 60 Hz

Type: Permanent Split Capacitor (PSC), oil cooled

Insulation: Class B

Discharge Size: 1-1/2” or 1-1/4” with adapter (not included)

Solids Handling: 1/8”

Liquid Temperature (max.): 130o F (55o C)

Hardware: Stainless Steel

Impeller: Impact Resistant Thermoplastic

Power Cord: 10' grounded three-prong, water-resistant, type SJTW-A/SJTW

Switch: Mechatronic vertical switch

Switch On Level: 8.9””

Switch Off Level: 4.5”

Shut Off Head: 20’

Maximum Flow: 47 GPM

Minimum Basin Diameter: 15”
