JACKEL 1/2 HP Sewage Pump (Model: JP550T)

  • $ 199.99
    Unit price per

Model: JP550T

Features & Benefits

  • Every pump is 100% factory tested
  • 3 year warranty

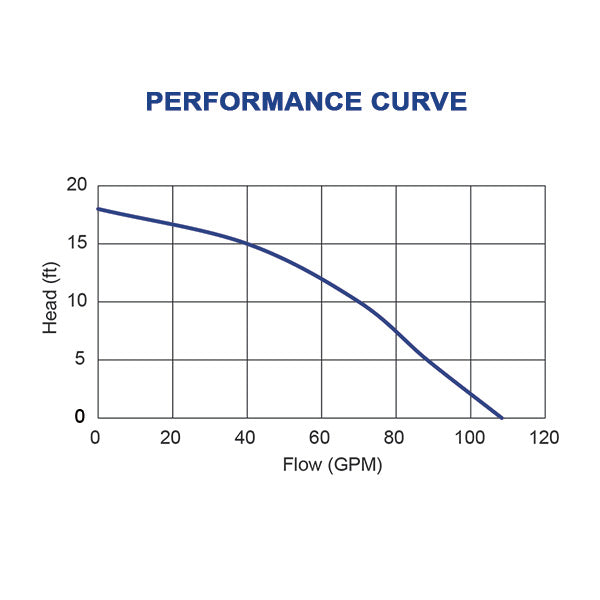

  • Factory certified performance curve included
  • Rated for continuous duty
  • Rugged cast iron construction maximizes pump life
  • Piggy-back tethered float for automatic or manual operation
  • Non-clogging vortex impeller passes 2 in. solids
  • High efficiency permanent split capacitor motor with automatic reset thermal overload protection
  • Ball bearings for quiet operation
  • 10 ft. power cord
  • Carbon and ceramic sealed motor for long life

Construction Materials
Motor Cover: Cast Iron
Volute: Cast Iron

Horsepower: 1/2
RPM: 3,450
Volt: 115 AC, 60 Hz
Full Load Amps: 7.4
Type: Permanent Split Capacitor (PSC), oil cooled
Insulation: Class B
Rating: Continuous Duty

Discharge Size: 2 in.
Solids Handling: 2 in.
Liquid Temperature (max.): 130 F (55 C)
Hardware: Stainless Steel

Type: Non-Clog Vortex
Material: Impact Resistant Thermoplastic

Bearing Type: Ball
Shaft Seal: Carbon/Ceramic
Power Cord: 10 ft. grounded three-prong, water-resistant, type SJTW-A/SJTW
Switch: Piggy-back tethered mechanical float, 10 ft. cord
Switch On Level: 15 in. Switch Off Level: 7.3 in.
Shut Off Head: 18 ft.
Maximum Flow: 108 GPM
Minimum Sump Diameter: 18 in.
